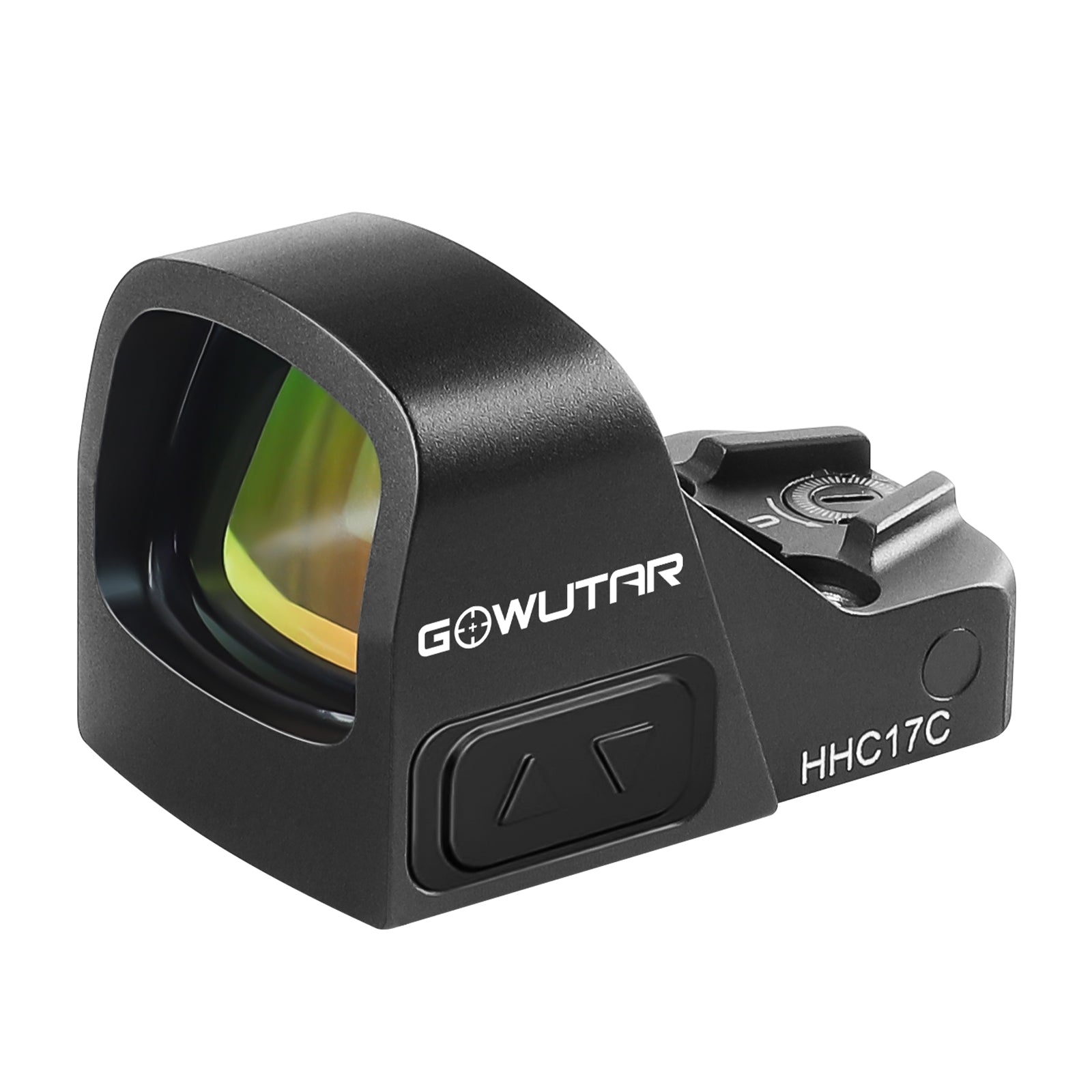

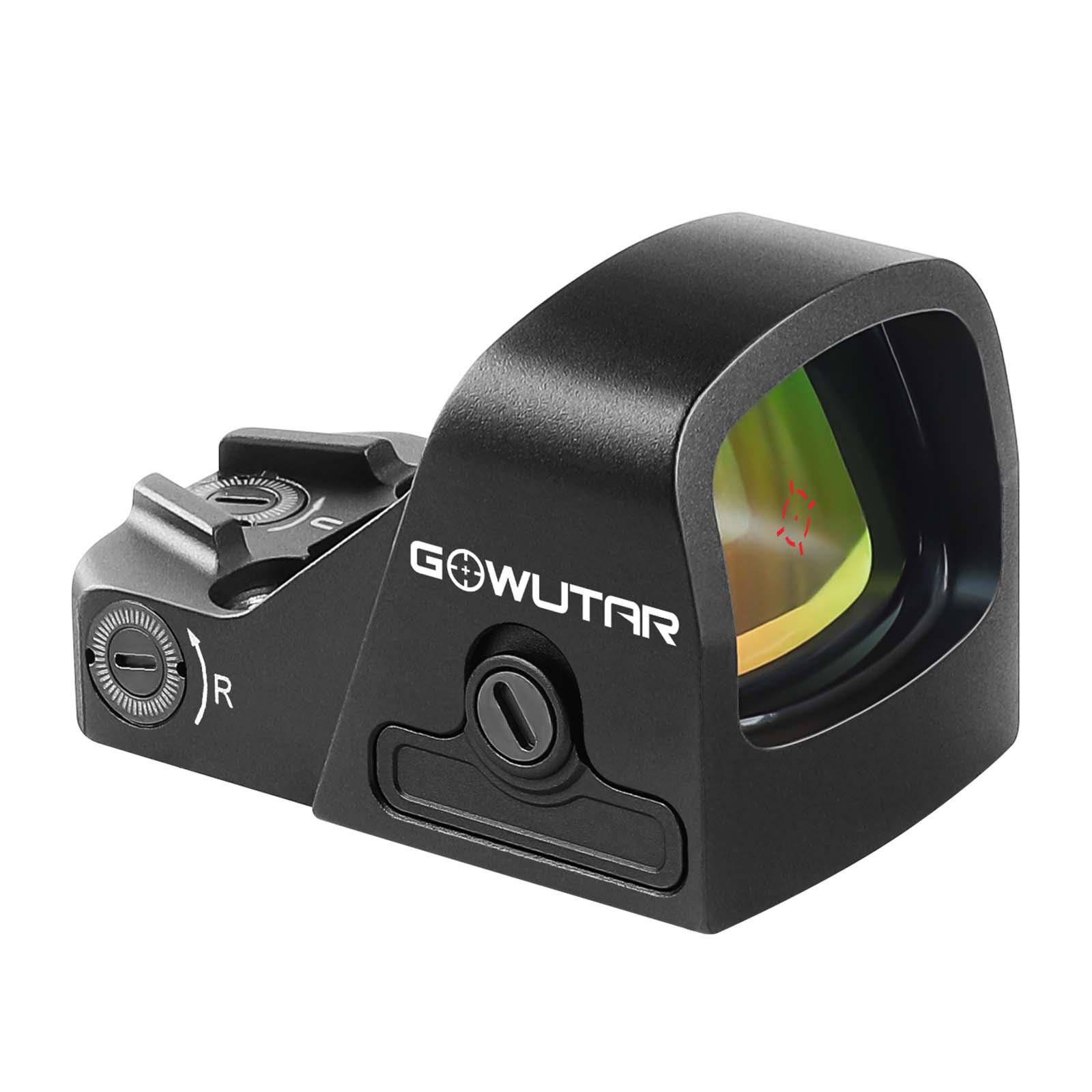

GOWUTAR HHC17C Multi-Reticle RMSc Red Dot Sight for Slim Pistols
FREE SHIPPING
Enjoy free shipping on all orders. Fast and reliable delivery to your door.
Product Features

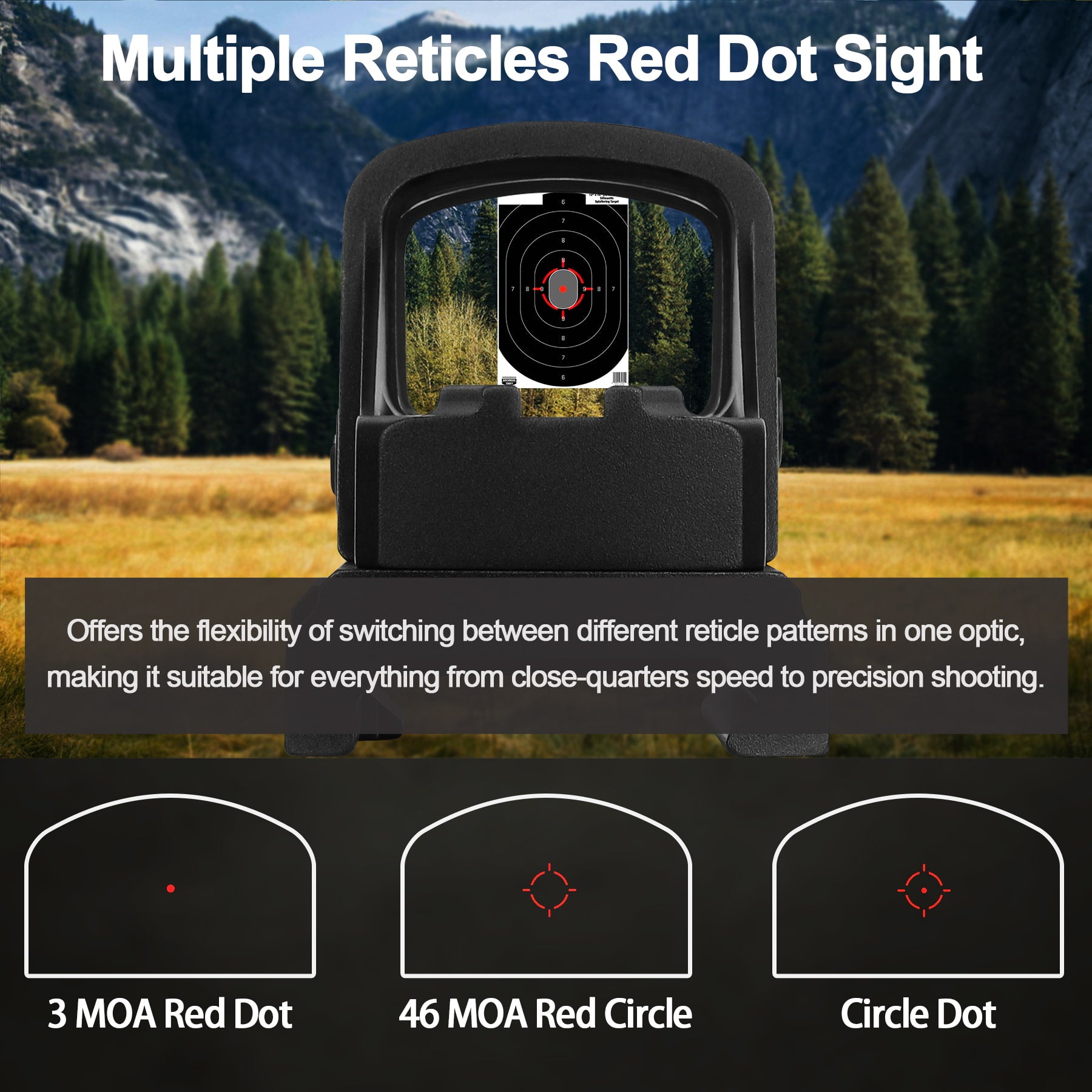

Three Reticles for Different Shooting Needs
The HHC17C combines three selectable red reticle configurations in one compact RMSc optic:
- 3 MOA Dot: A clean aiming point for precise shot placement.
- 46 MOA Circle: A large visual reference for fast target acquisition at closer distances.
- 3 MOA Dot + 46 MOA Circle: Combines a precise center dot with a fast outer reference.
To change the reticle, turn on the optic and hold the ▲ button for three seconds. Repeat the process to cycle through the available options.
This flexible reticle system allows shooters to adapt the sight picture for concealed carry, range training, and other shooting applications without changing optics.

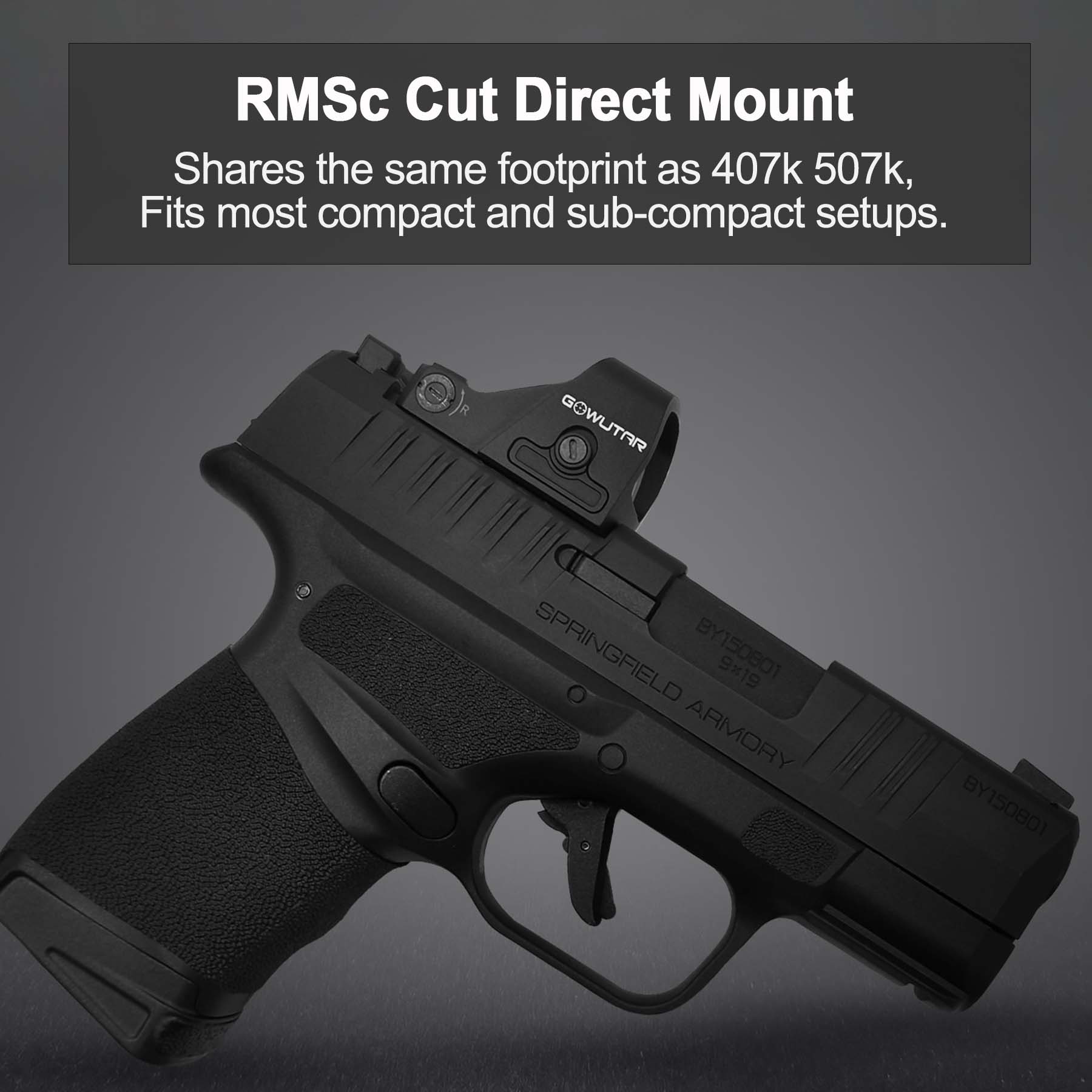

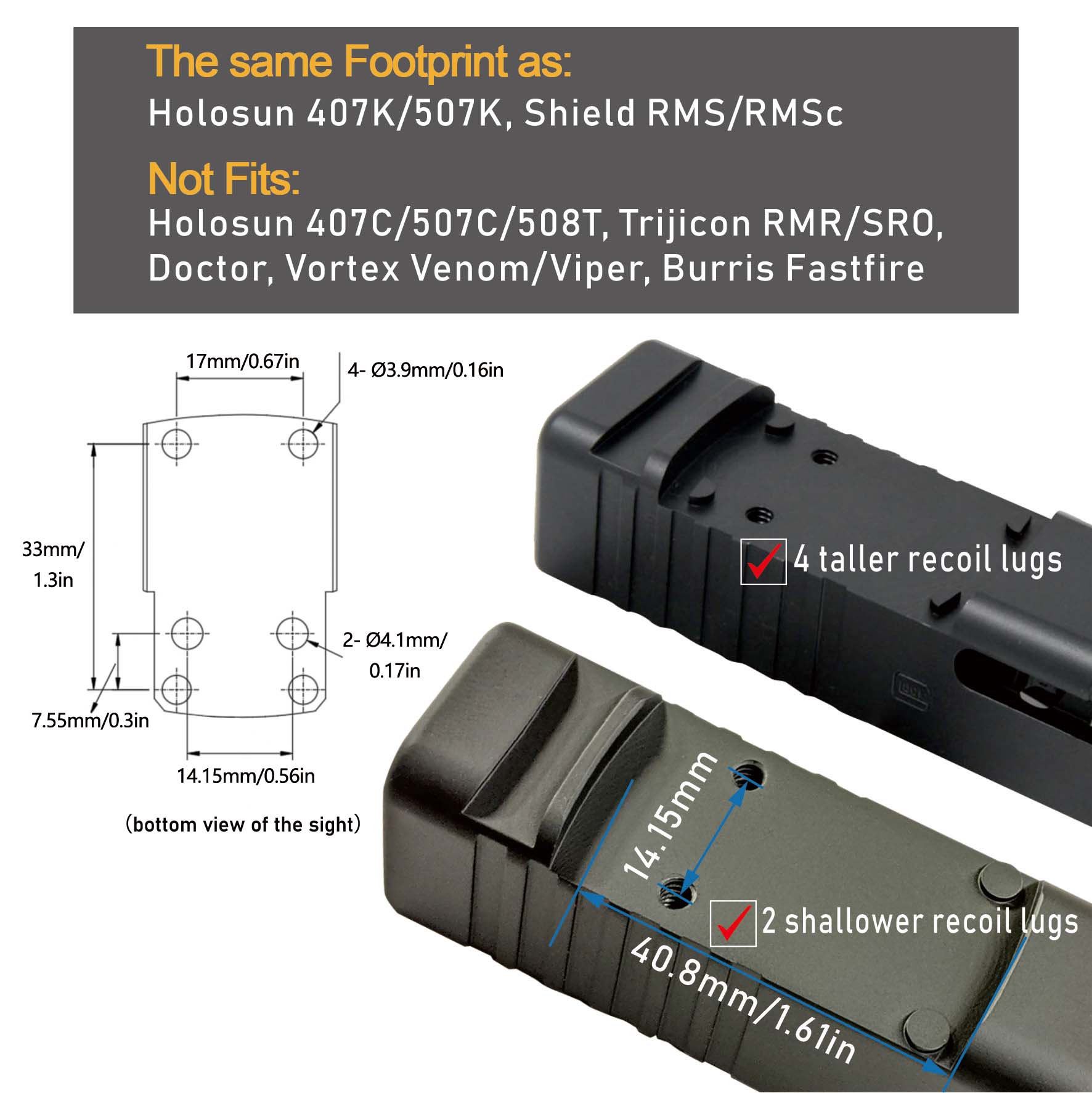

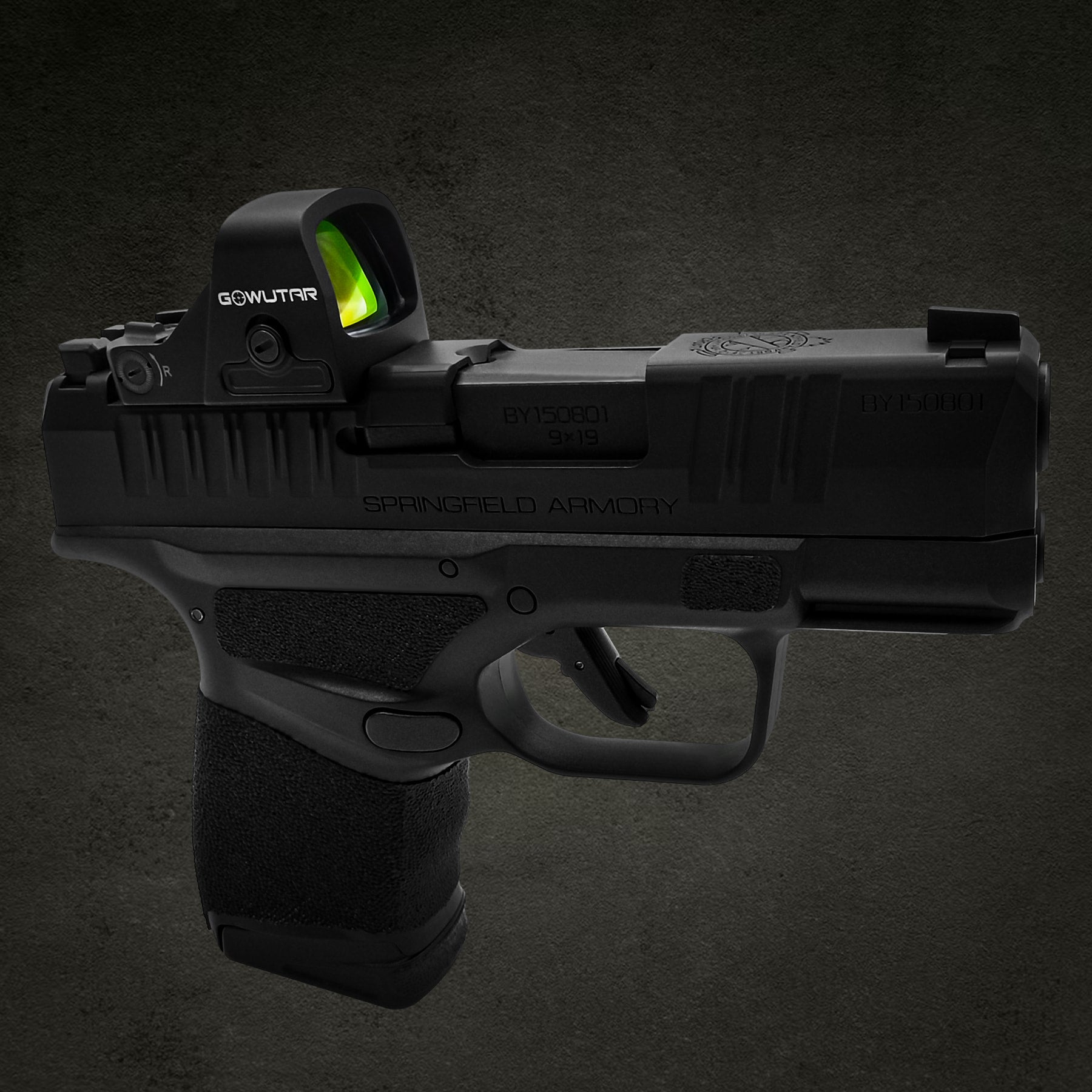

Compact RMSc Red Dot for Micro Pistols
The HHC17C is designed for compatible pistols using the industry-standard RMSc footprint. Its compact 40.65 × 26 × 26.4 mm body and 28 g weight help maintain the balance and handling of micro and subcompact pistols.
For customers searching for a lightweight pistol red dot or concealed carry optic, the HHC17C provides multiple reticle choices without the size and weight of a full-size competition optic.

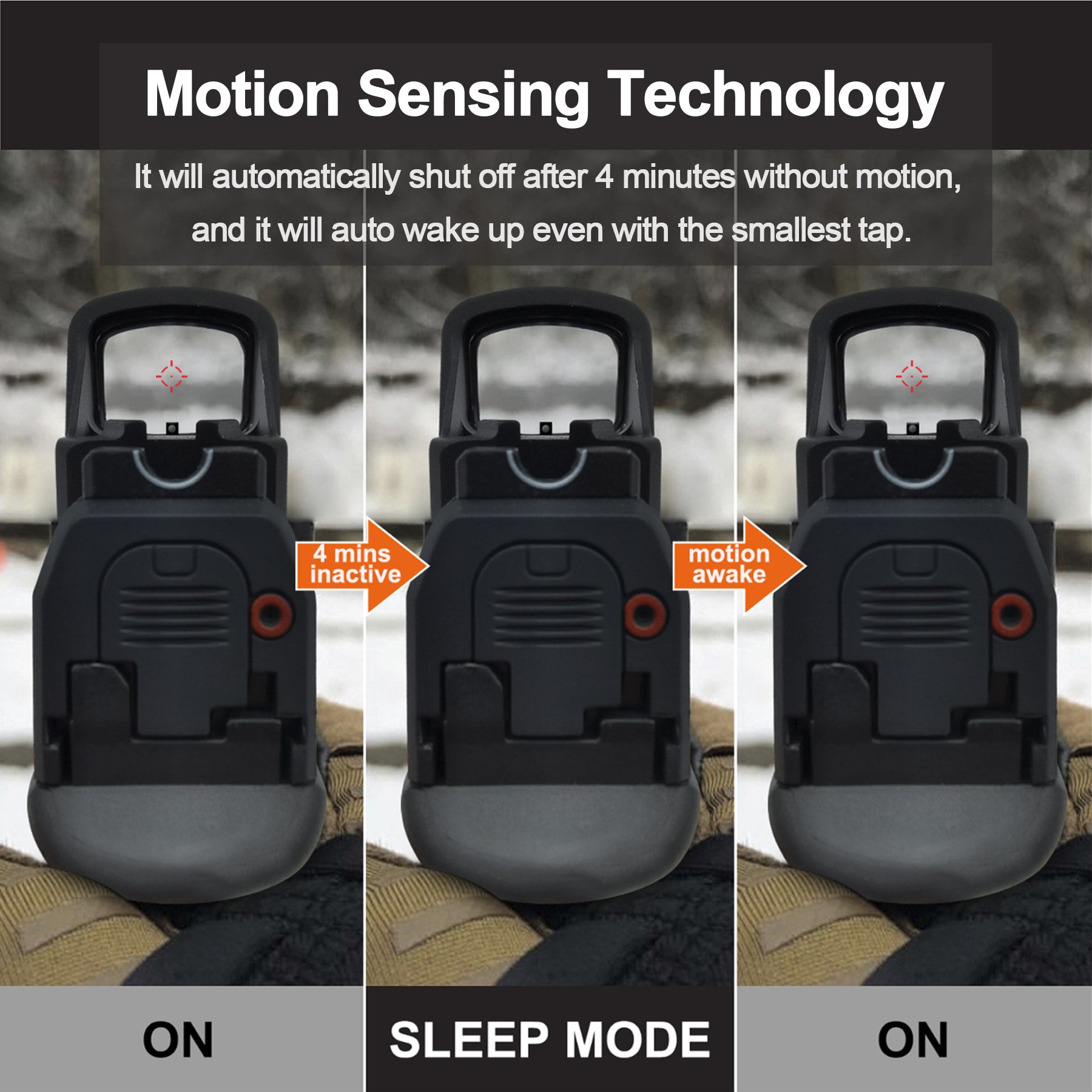

Shake Awake for Carry-Ready Performance
Once the sight is turned on, its motion-activated illumination operates automatically. After approximately 240 seconds without movement, the reticle turns off to conserve power.
When movement is detected, the optic rapidly wakes and returns to the previous brightness setting. This Shake Awake red dot system helps keep the sight ready while supporting battery life of up to 40,000 hours, depending on brightness, reticle selection, movement, and use.

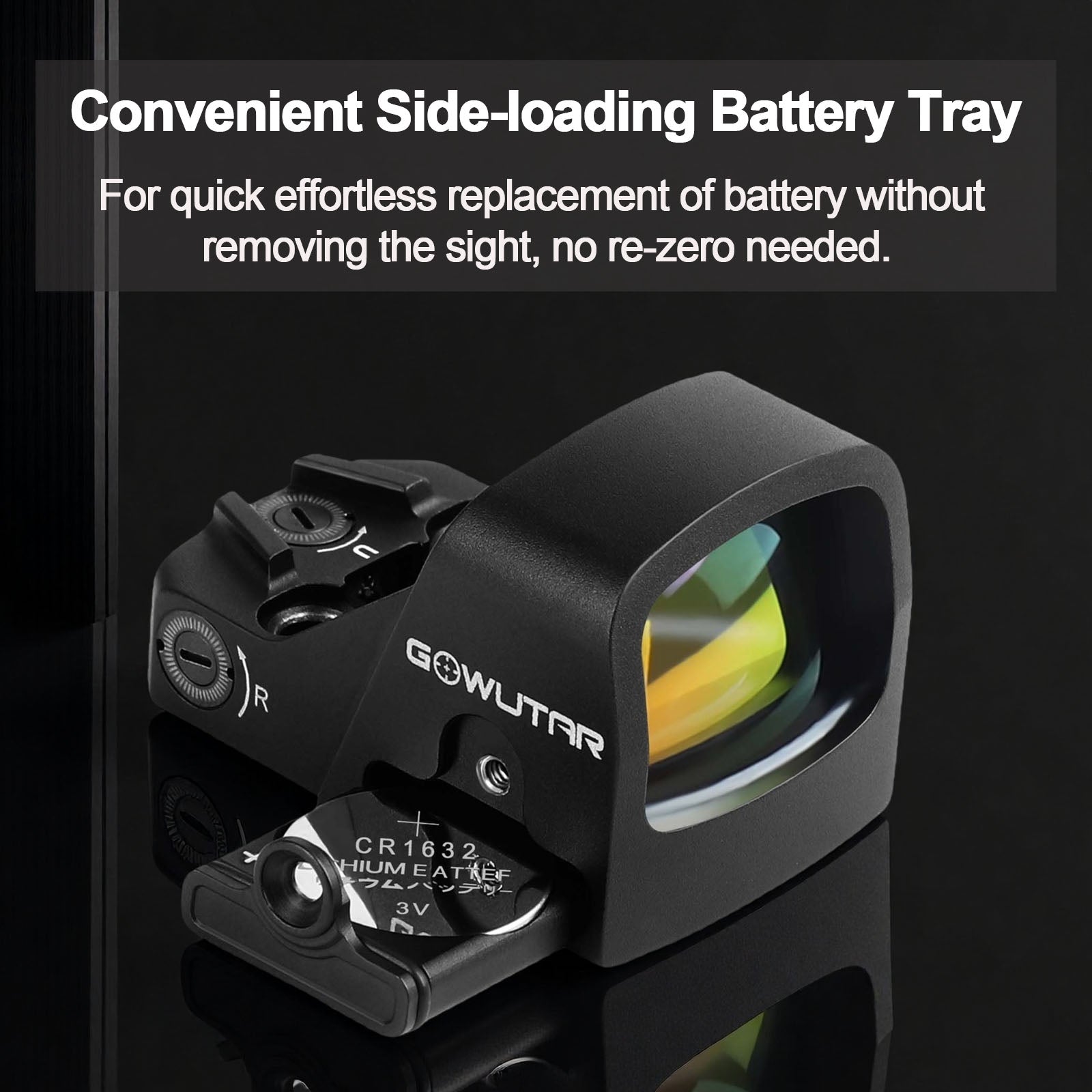

Side-Loading CR1632 Battery
The side-loading battery tray allows the CR1632 battery to be replaced without removing the optic from the firearm. Because the sight remains mounted, routine battery changes are less likely to disturb the established zero.
This design is especially useful for an everyday carry red dot, where convenient maintenance and consistent mounting are important.
Built for Everyday Carry and Range Use
The HHC17C is constructed from 6061 aircraft-grade aluminum and weighs only 0.99 oz. Its housing is rated for 1500G shock resistance and IPX7 waterproof protection up to one meter.
The combination of compact size, low weight, recoil resistance, and weather protection makes it suitable for concealed carry, range training, home defense, and general outdoor use.
Integrated Co-Witness Channel
The rear section of the optic includes an integrated sighting channel that may provide an additional visual reference with compatible pistol configurations.
Note: Actual co-witness visibility depends on the firearm, slide cut, adapter plate, mounting height, and factory iron-sight height.

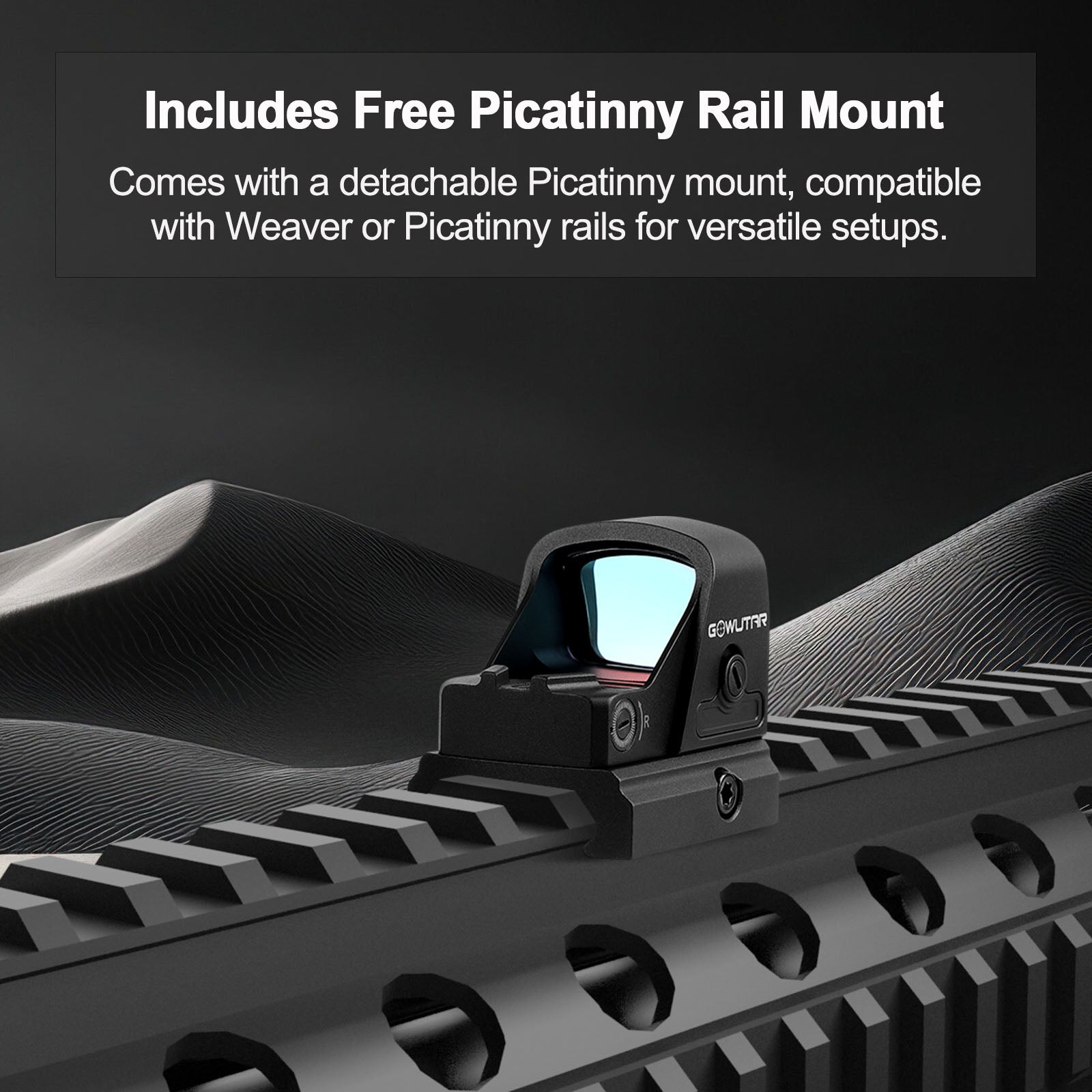

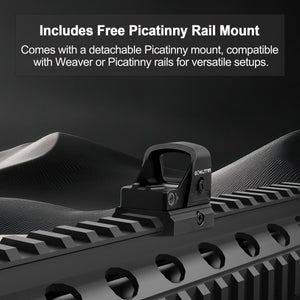

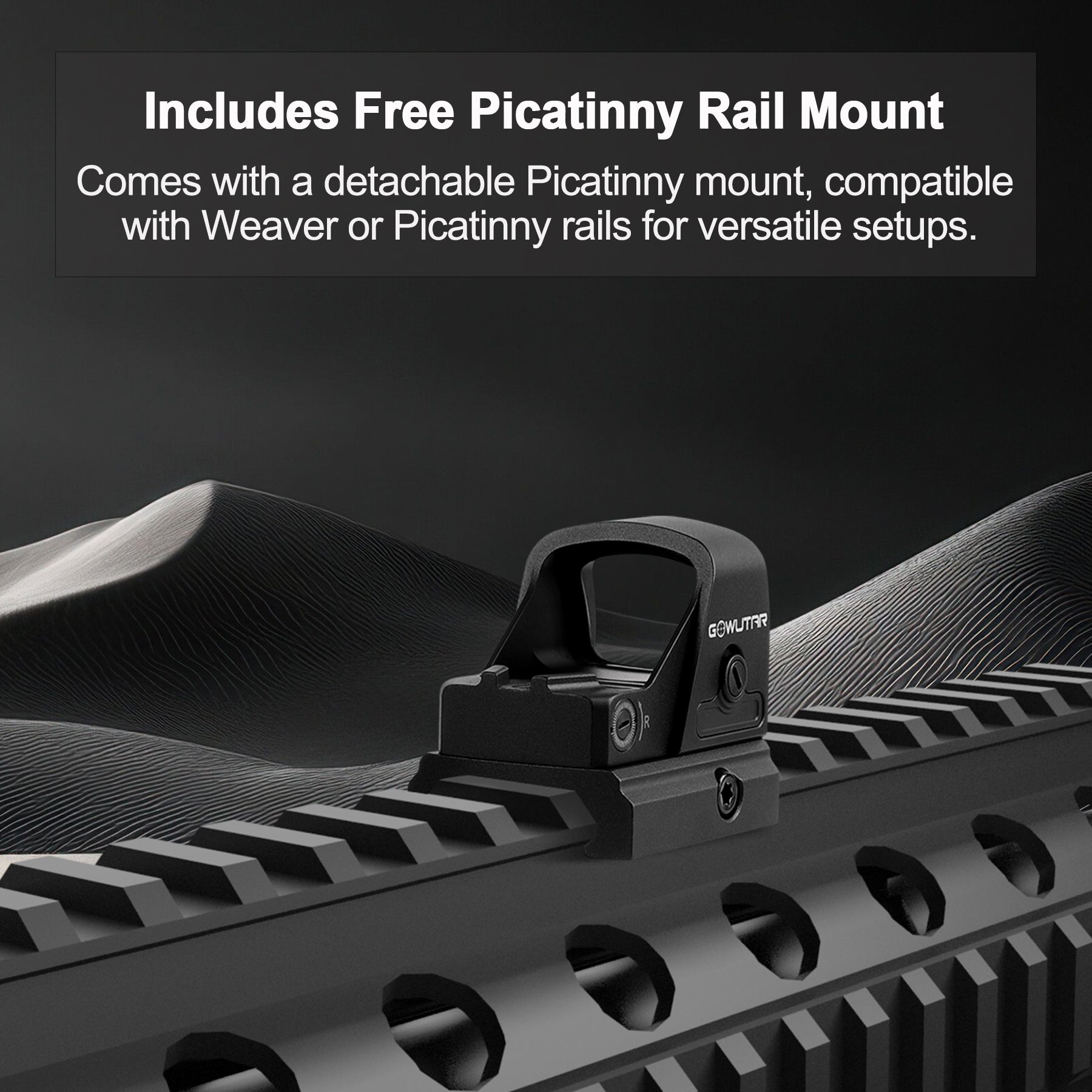

Picatinny Mounting Option
The included low-profile Picatinny mount allows the HHC17C to be configured for compatible rifles, shotguns, and other rail-equipped platforms.
This additional mounting option gives customers more flexibility if they want a compact red dot sight for both handgun and long-gun applications.
Specifications
| Model | HHC17C Open Reflex Sight |
| Reticle Color | Red |
| Reticle Options | 3 MOA Dot / 46 MOA Circle / Circle-Dot |
| Reticle Switching | Hold ▲ for 3 Seconds |
| Footprint | RMSc |
| Included Mount | Low-Profile Picatinny Mount |
| Housing Material | 6061 Aircraft-Grade Aluminum |
| Lens Size | 21 × 16.4 mm / 0.83 × 0.65 in |
| Lens Coating | Fully Multi-Coated |
| Magnification | 1× |
| Eye Relief | Unlimited |
| Brightness Settings | 10 Levels: 8 Daylight + 2 NV |
| Motion Activation | 240-Second Automatic Timeout |
| Adjustment Value | 1 MOA per Click |
| Windage/Elevation Range | ±45 MOA / 90 MOA Total |
| Waterproof Rating | IPX7, Up to 1 Meter |
| Shock Resistance | 1500G |
| Battery | CR1632 3V |
| Battery Access | Side-Loading Tray |
| Battery Life | Approximately 160–40,000 Hours |
| Dimensions | 40.65 × 26 × 26.4 mm / 1.60 × 1.02 × 1.04 in |
| Net Weight | 28 g / 0.99 oz |

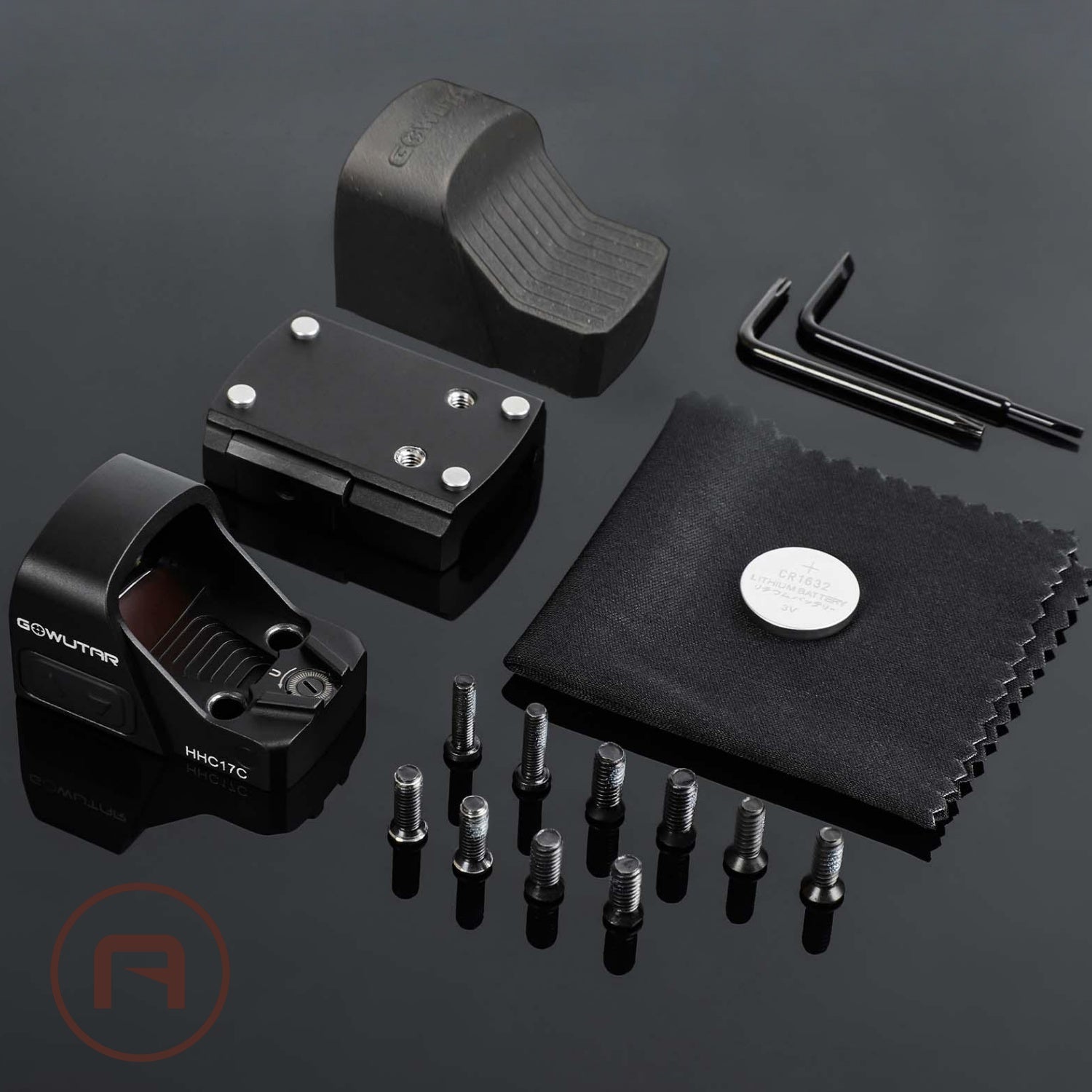

Package Contents
- 1 × GOWUTAR HHC17C Multi-Reticle Sight
- 1 × Low-Profile Picatinny Mount
- 1 × CR1632 Battery
- 4 × Mounting Screw Sets
- 1 × Protective Cover
- 1 × Mini Screwdriver
- 1 × Lens Cloth
- 1 × User Manual
(Prefer a single red dot or a single green dot aiming point? Check out the HHC17R Red Dot Sight and HHC17G Green Dot Sight)
FAQ
What reticles does the HHC17C offer?
It offers a 3 MOA dot, a 46 MOA circle, and a combined 3 MOA dot with a 46 MOA circle.
How do I switch reticles?
Turn on the optic and hold the ▲ button for three seconds. Repeat to cycle through the three reticle options.
Does changing the reticle change the zero?
The reticles share the same optical center and are designed to retain the established point of aim. Always confirm zero after installation and before use.
Does the sight have Shake Awake?
Yes. The reticle turns off after approximately four minutes without movement and wakes at its previous brightness setting when movement is detected.
Do I need to remove the sight to replace the battery?
No. The side-loading CR1632 battery tray allows battery replacement while the optic remains mounted.
Is a Picatinny mount included?
Yes. A detachable low-profile Picatinny mount is included for compatible rail-equipped platforms.
Can the HHC17C co-witness with iron sights?
It includes an integrated rear sighting channel, but the actual co-witness depends on slide-cut depth, adapter-plate thickness, and iron-sight height.
Is the HHC17C waterproof?
It carries an IPX7 rating and is designed to withstand temporary water exposure up to one meter when properly assembled.
